计算机纯净版系统安装U盘制作

发布日期:2018/06/08 08:00:00

  一、 下载相对应软件工具包

  1. win7旗舰版镜像

  2. UltraISO(软碟通)U盘刻录工具

  3. Win7系统磁盘驱动器USB3.0补丁工具(Windows USB Installation Tool)

  4. 大于8GB U盘一个

  二、 打开软碟通

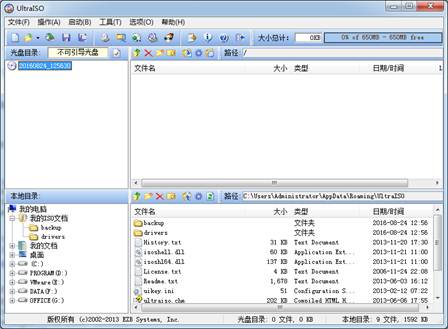

  1. 双击打开软碟通工具,软件打开窗口如下图

系统安装U盘制作

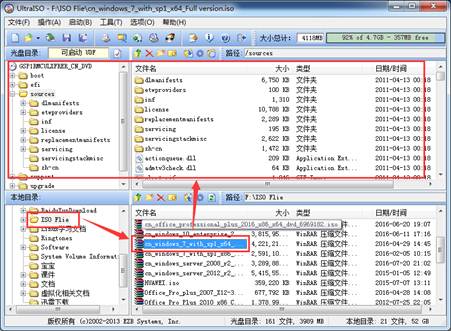

  2. 在工具窗口下方,找到win7镜像所在目录并双击打开。正确效果如下图示

系统安装U盘制作

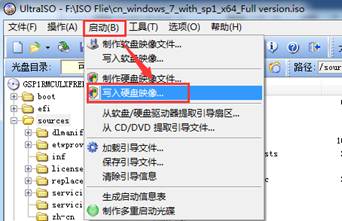

  3. 点击软件上方启动标签,点击写入硬盘映像,如下图示

系统安装U盘制作

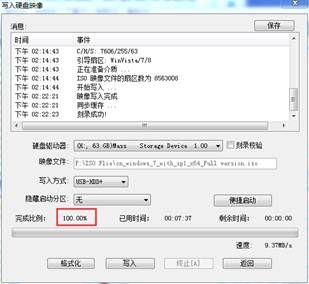

  4. 在弹出的对话框中按照图下顺序依次检查。注意:硬盘驱动器是要选择自己的U盘一定要选对;写入方式选择USB-HDD+;之后点击写入。等待进度完成,即完成烧录U盘

系统安装U盘制作

  完成后如下图所示

系统安装U盘制作

  三、 打USB3.0补丁到启动盘

  以解决在安装系统时部分电脑无法识别磁盘驱动器的故障

  1.工具下载

  工具名称:Windows USB Installation Tool

  支持操作系统:Windows 7 64bit

  工具容量:7.73 MB

  http://download.gigabyte.cn/FileList/Utility/mb_utility_windowsimagetool.zip

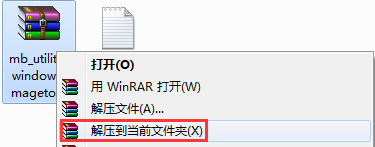

  2.鼠标右击上面下载好的工具,选择“解压到当前文件夹”

系统安装U盘制作

  3.打开解压缩后生成的“ WindowsImageTool”文件夹

系统安装U盘制作

  4.鼠标右击“ WindowsImageTool.exe”,选择“以管理员身份运行”

系统安装U盘制作

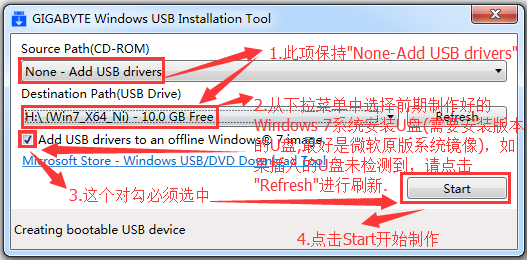

  5.按照下图箭头指示和文字说明操作

系统安装U盘制作

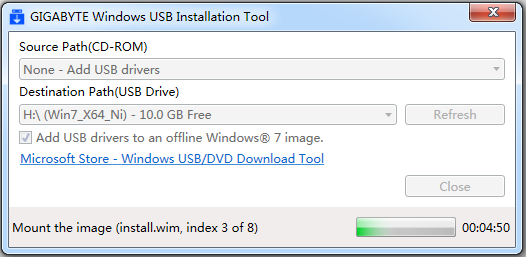

  6.制作过程需要将近20分钟(与镜像大小和U盘写入速度有关,请耐心等待)

系统安装U盘制作

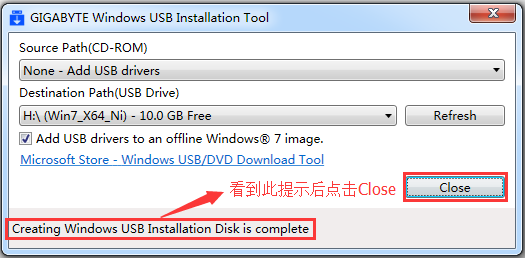

  7.看到“Creating Windows USB Installation Disk is complete”提示时代表已操作完成,请点击“Close”关闭工具软件。

系统安装U盘制作
